Event Museum X Ray Security Scanner For Rental Low Power Consumption

Brand Name : Safeway System & Secu Scan

Model Number : AT8065

Certification : CE,ROHS,FCC,FDA,ISO,REACH

Place of Origin : CHINA

MOQ : 1 unit

Price : USD 12000-15000 per unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 10000 units per month

Delivery Time : 7-10 days

Packaging Details : wooden carton

X-Ray : 160kv Generator

Energy : dual energy

System : Windows

Tunnel Size : 810*655mm

Conveyor Max Load(kgs) : 180kg

Noise : <60db

Contact Now

Dual-Energy X-ray Baggage Scanner Hold Baggage Screening X Ray Security Scanner For Rental In Event , Museum

Physical Specifications
Unit weight (kgs)	640
Unit size (mm)	2848.5(L)1095(W)1535.5(H)
after packed in wooden pallet -
Gross weight (kgs)	800
Packing size	#1: 213121179cm
	#2: 11590142cm

General Specifications
Tunnel size(mm)	810*655
Conveyor Speed(m/s)	0.2
Conveyor height(mm)	338.5
Conveyor Max Load(kgs)	180
X ray dose per each inspection	Typical 2.5 μGy/h, guarantee 3.0 μGy/h
X ray leakage	Typical 0.5 μGy/h, guarantee 1.0 μGy/h
Penetration	Typical 30mm, guarantee 27mm
Wire Resolution	Typical AWG36, guarantee AWG34
Penetration Resolution	Typical AWG32, guarantee AWG30
Spatial resolution:	Typical dia1.3mm,Vertical: dia1.3mm; Guarantee dia1.6mm,Vertical: dia1.6mm;
Power Consumption	max. 1KW
Noise	< 60 dB
Film Safety	Guarantee ASA/ISO1600 Film

X-ray Generator
Anode Voltage	140 KV
Anode power	0.7mA
Generate angle	82 degree upward
Generate direct	from top to bottom
Cooling / Duty Cycle	Oil Cooling /100%
Brand	local made

Image System
X-ray Sensor	L-Shaped Photodiode Array (multi-energetic) , 16bit Deep
Image Display	High resolution of 1024 * 1280 pixel; Image Grey Level: 65536
Image Enhancement	1-64times enlargement continuity, Color/BW, negative, high/low penetration, organic /inorganic Stripping, general enhancement, and pseudo color, etc.
Image Recall	All preceding images recallable, retrieval
Explosives & Narcotics Detection	Explosives & narcotics alarm and highlight according to atomic number signature
High Density Region Alarm	Impenetrable region alarm and highlight, for possible concealing of threats and contrabands
Threat Image Projection	Inserting fictional, but realistic images of threat items into baggage during screening operation, for maintenance of vigilance, as well as training and assessment of image identification capability
Image Archive	Up to 200,000 images stored automatically, enable transferring to USB disk, and converting to JPG, BMP and other general formats
Miscellaneous Functions	Time/date display, counters, user management, system-on/X-ray-on timers, power on self test, built-in diagnostic facilities, dual-direction scanning, system log, system standby and stimulant training, ADS etc.
Network Applications	Multiple remote applications available based on Ethernet LAN and windows platform, such as image centralized storage and identify, recheck workstation, and network TIP, etc ( Optional) .
Images process	24bit real time processing ,4colors analysis, Images displayed marked date and ID NO ,Count the number of bags

Operating Environment
Operation temperature/Humidity	0℃-45℃ / 5%-95%(non-condensing)
Storage Temperature/Humidity	-40℃to 70℃ / 5%-95%(non-condensing)
Operation Power	220VAC(±10%) 50±3Hz (Optional: 100VAC,110VAC,120VAC,200VAC)
UPS	15mins, 30mins, 60mins etc, optional

Computer and other
Monitor	High Resolution Color, LCD Accord, 17inch
Hard Disk	SEAGATE 500G 3.5”
CPU	G1610 2.6G
Storage	2GB 1600MHz DDR3 Innodisk
Main board	H61 SYM76993VGGA

Certification:

CE Certificate
ISO9001 Certificate
ISO14001 Certificate
OHSMS18001 Certificate
USFDA Certificate
Radiation Safety Certificate From Chinese Government
Test Report From Inspection Center Of State Security Ministry

Advantages

Comprehensive leadership: Product performance of International first-class level, high-definition images, strong penetration, high resolution, and powerful material identification.

Unique system: with embedded windows operating system, multi-core ARM, the system features a simple architecture, low power consumption, energy saving and environmentally friendly, meanwhile it has a real-time status monitoring function to keep abreast of the device work process.

Safety and environmentally friendly: The equipment meets safety and environmental standards.

Stable and reliable: The production process is strictly controlled in accordance with the IS09001 quality management system. Through rigorous high-low temperature experiments, wet heat experiments and vibration experiments, it is certified that the product runs continuously for more than 10,000 hours without failure.

Equipment functions

Imaging process functions: Color/BW, Local Enhancement, Enhancement of High Penetrating Power, Enhancement of low Penetrating Power, Super Enhancement, Organics Exclusion, Inorganic Exclusion, Negative, Brightening, Darkening, Gray-Level scan, Zoom in and out, Pseudo-color Processing, Organics Enhancement, Alarm sign box of suspicious object, Edge Enhancement.

System functions: Power-on self-test, multi-level user management, image management, TIP management, curve diagnosis, keyboard diagnosis, device information query, multi-format image export, OSD operation function, image mirroring, 1-64 times stepless magnification, magnifying glass, Operator training, accurate positioning of package images, empty channel reminders, remote operation software, one-button shutdown, and intelligent roller engine (optional).

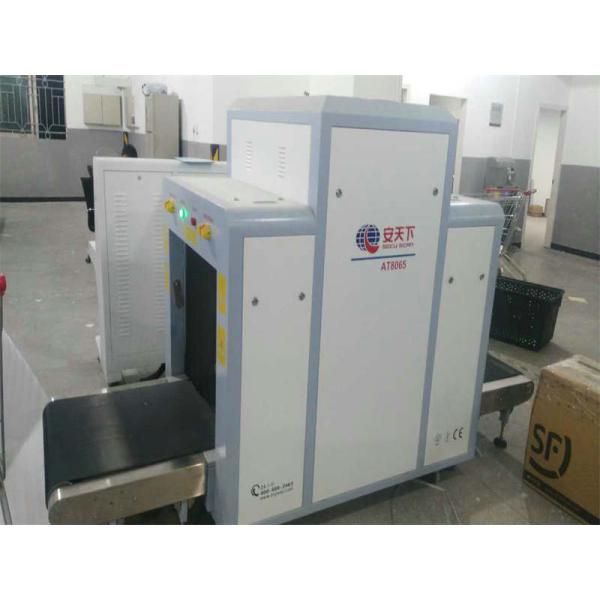

Product pictures:

Event Museum X Ray Security Scanner For Rental Low Power Consumption
